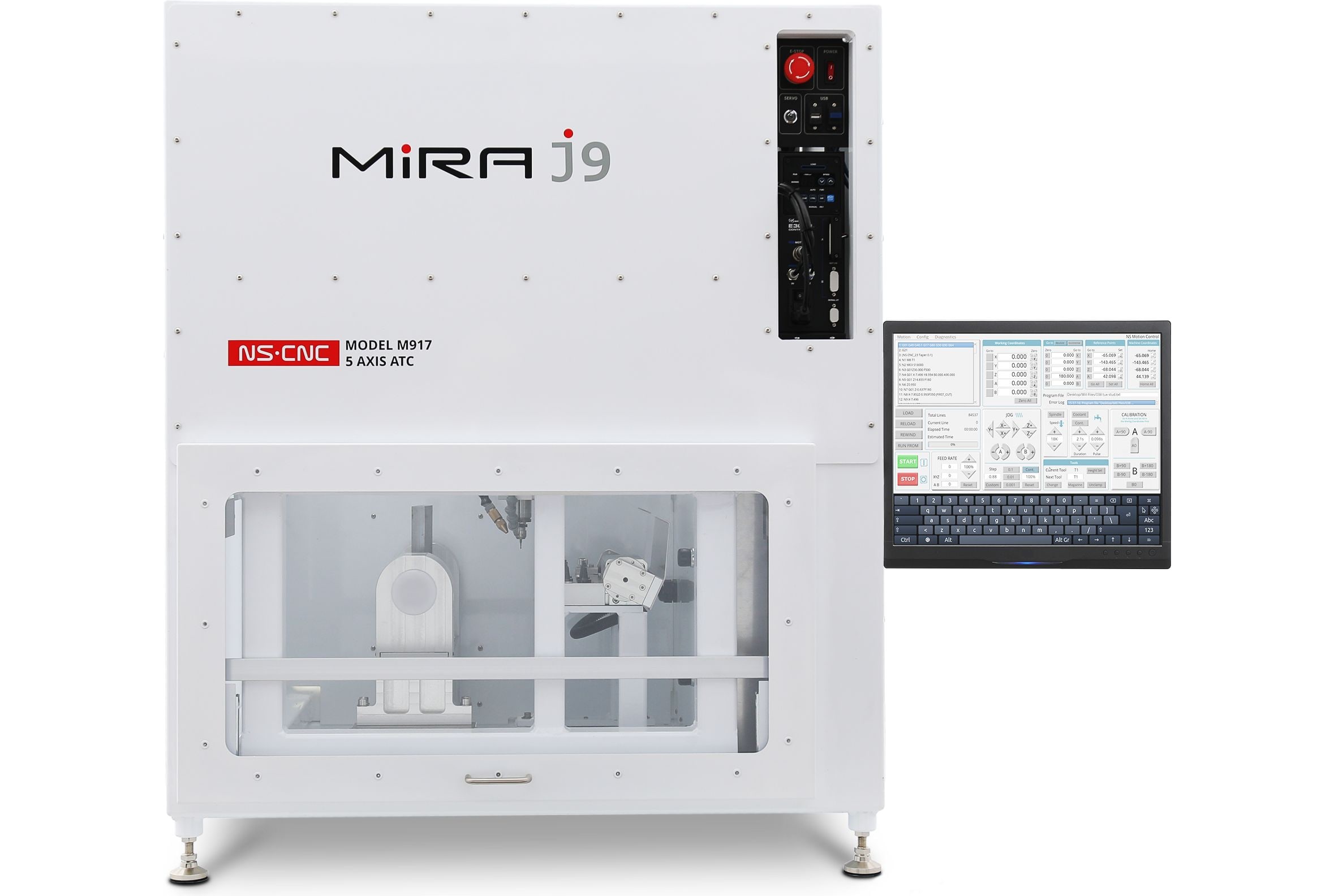

Introducing the New Mira J9 NSCNC Milling Machine:

Elevating Precision and Efficiency in CNC Technology

We are pleased to announce the upcoming release of our latest innovation – the Mira J9 milling machine. This advanced model represents a significant advancement in our line of heavy-duty 5-axis CNC machines, designed to meet the demands of professionals working with a wide range of materials, including hard metals and plastics.

Building on the success of its predecessor, the Mira J9 features several key upgrades, including an automatic tool changer for faster, more efficient operations. This, combined with enhanced carriages, improves overall machining accuracy and performance.

Additional highlights of the new machine include a high-performance spindle and a hermetically sealed work area, which ensure reliability and durability for complex, demanding projects. Despite its powerful capabilities, the Mira J9’s compact design makes it an ideal solution for facilities with limited space.

We will be sharing more detailed specifications, photos, and videos in the coming weeks as we prepare for the official launch. The Mira J9 milling machine is poised to set a new standard in CNC technology, offering unmatched precision, efficiency, and versatility for professionals across industries.

Specifications

Machine Overview
  • Model: 912 Mira J9, 5-Axis
  • Machine Type: Desktop Simultaneous CNC Mill
  • Cuttable Material: Plastic, Hard Wood, Metal
  • Linear Axes: X Y Z
  • Rotary Axes: A B
  • Machine Codes: Universal Standard G & M Codes
Applications
  • Rapid prototyping
  • Watch production
  • Microscopic sensors and chips
  • Biomedical and Microfluidics
  • Micro-scale small parts and structures
Accuracy
  • Resolution: 0.00001″ (0.0003 mm)
  • Position: 0.0003″ (0.008 mm)
  • Repeatability: 0.0004″ (0.010 mm)
  • Rotary A, B  Resolution: 0.10 Arc-Sec
Mechanical Data
  • Linear Motion: Ball Screws with Precision LM Guide
  • Max Feed Rate: 200 inch/min (5000 mm/min)
  • Max Rotary B Speed: 300 Deg/Sec
  • Max Rotary A Speed: 300 Deg/Sec
  • A Turntable Diameter: 6″ (150 mm)
  • B Turntable Diameter: 4″ (100 mm)
  • Backlash: Zero backlash
Motion System
  • Motors: Servo, 200 Watts, AC
  • Encoders: 16-bit Absolute
  • Drivers: Servo AC
Control System
  • Control Program: NS – Motion
  • Computer: Mini PC Built-in
  • Monitor: 19 – 21” LED LCD
Spindle
  • Brand: NSK Nakanishi, Japan
  • Model: E3000 3060 AQC
  • Spindle speed with air: up to 60,000 RPM
  • Spindle speed without air: up to 30,000 RPM
  • Power: 350 Watt
  • Spindle Accuracy : 0.00004″ (0.001 mm)
  • Bearings: Ceramic
  • Motor: Brushless
Tools
  • Tool Capacity: 15
  • Collet Holder (Taper): Nakanishi QC3-K
  • Tool Changing: Pneumatic
  • Collet, Standard: 1/8″ (3.175 mm)
  • Collet, Additional: From 1.00 to 6.35 mm with a step of 0.1 mm
Air System
  • Air filter: Built-in Air Line Kit
  • Required air pressure for spindle: 40 psi
  • Required air pressure for ATC: 87 psi
  • Filter Mesh: 0.3 micron
Coolant System
  • Type: Liquid Cooled
  • Filtration: Self filtrated
  • Circulation: Constantly Circulating
  • Coolant Capacity: 6 Gallons (23 Liters)
Working Distance
  • X-Axis: 4.0 inches (102 mm)
  • Y-Axis: 4.0 inches (102 mm)
  • Z-Axis: 5.0 inches (140 mm)
  • Rotary A: 360 Deg Continuous
  • Rotary B: 360 Deg Continuous
Machine Size and Weight
  • Width: 36.6 inches (920 mm)
  • Depth: 28.7 inches (730 mm)
  • Height: 42 inches (1050 mm)
  • Weight: 660 Pounds (300 Kg)
Packaging Size and Weight
  • Width: 42 inches (1070 mm)
  • Depth: 36 inches (915 mm)
  • Height: 57 inches (1450 mm)
  • Weight: 880 Pounds (400 Kg)
Power
  • Requirements: Single Phase 110 or 220 VAC 50/60 Hz
  • Capacity: 10.0 A (100 – 120 V)
  • Consumption: Apr. 2,0 KW
Operating Environment
  • Temperature: 41F – 113F (5C – 45C)
  • Humidity: 30% – 80%
  • Ambient pollution degree: 2
  • Operating noise: 70 dB (A) or less (when not milling)

The product images shown are for illustration purpose only. Actual product and specifications may vary due to product enhancement and continuous improvement

Advanced Rotary Head Design for Maximum Performance

The machine features a newly engineered rotary head with a dual-bearing support structure, delivering exceptional rigidity and eliminating vibration—even under extreme cutting loads. This robust design ensures stable and precise machining, even during the most demanding operations. To maintain this performance, the rotary axis (A-axis) is precisely aligned

with the machine’s linear axes, guaranteeing ideal kinematic accuracy. The rotary head is equipped with a high-performance harmonic reducer and a premium-quality motor sourced from leading Japanese manufacturers. This combination provides exceptional torque, smooth rotation, and unmatched precision—essential for high-performance and high-accuracy applications.

Versatile Workpiece Holding with

Quick-Release System

Mira J9 offers flexible workpiece holding options, supporting both traditional mounting methods used on the NS CNC Mira Mills and an advanced Quick-Release System (QRS).

The QRS features a compact mini pallet design that enables fast and easy installation or removal of the workpiece setup. Despite its simplicity, the system ensures exceptional precision, with pallet positioning accuracy within 1 micron.

Workpieces can be secured using a standard vice or mounted directly to the pallet via screws. For specialized applications, our company also provides custom holder manufacturing tailored to the QRS, ensuring optimal performance and adaptability across various machining needs.

New Automatic Tool Changer with

Integrated Tool Height Measurement

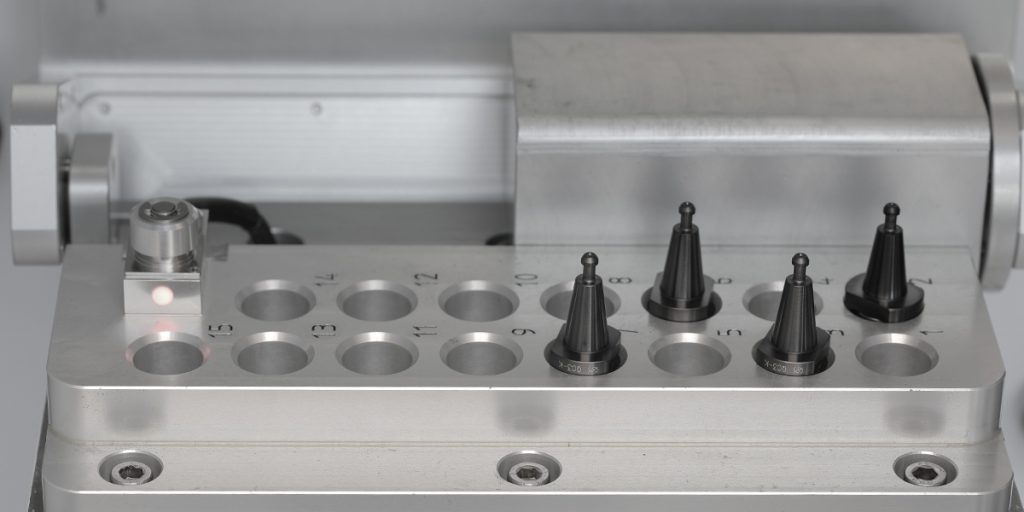

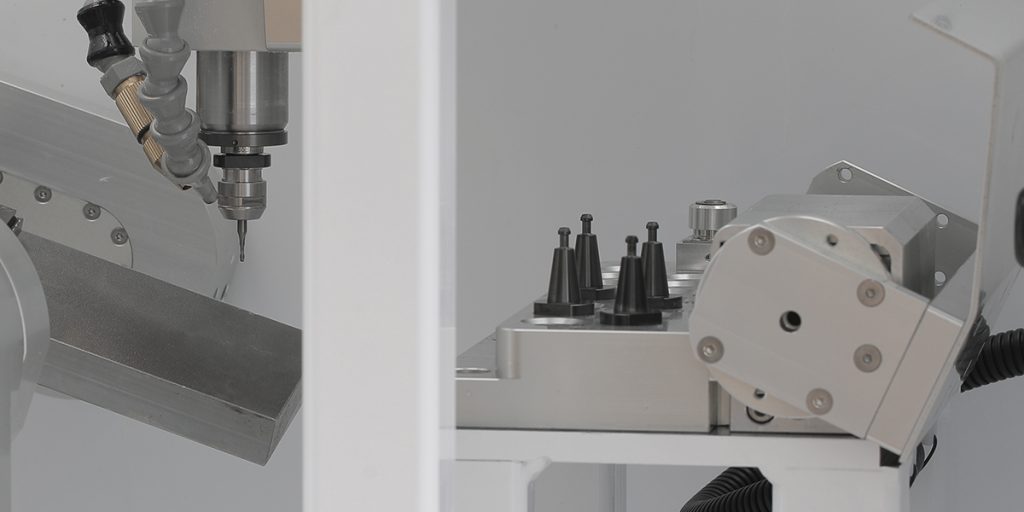

The machine is equipped with a newly designed Automatic Tool Changer (ATC) featuring 15 tool pots for efficient and seamless operation. Central to this system is the NSK Nakanishi spindle, which includes a pneumatic tool clamping mechanism for quick and reliable tool changes.

Tool clamping and unclamping can be carried out in several convenient ways:
• Automatically via the control program using the standard M6 command
• Manually from the machine interface by pressing the Clamp button
• Directly within the work area using the upper black button for quick access

Each time a tool change occurs, the machine automatically measures the tool height using a Tool Height Sensor (THS). This sensor features an LED indicator that lights up upon contact, confirming accurate detection and positioning.

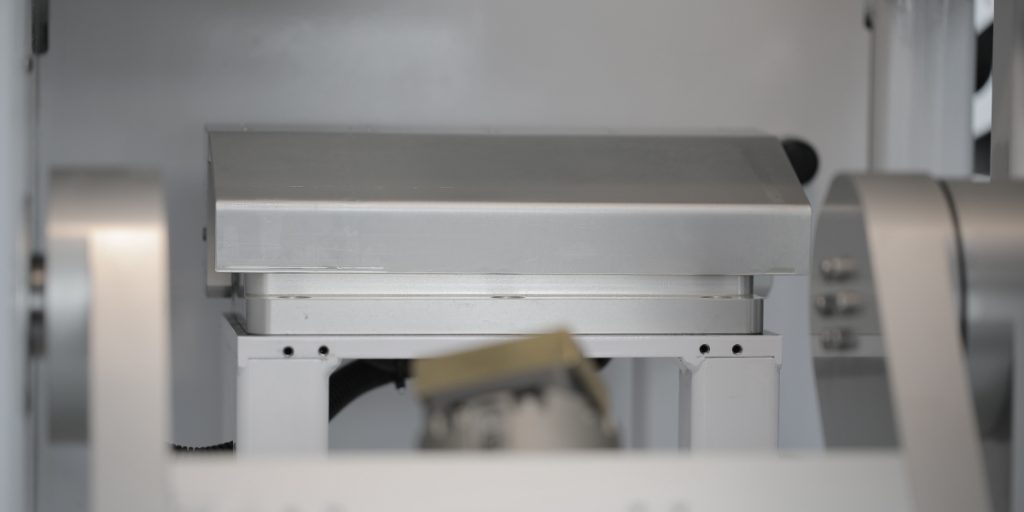

To ensure durability and cleanliness, the ATC is protected by a chip-resistant cover that automatically lifts during tool changes, keeping the mechanism clear and operating smoothly.

Precision Spindle by NSK Nakanishi –

Built for Performance

As with all NS CNC machines, the Mira J9 is equipped with a high-performance spindle from the globally renowned manufacturer NSK Nakanishi. This ensures the highest level of precision, reliability, and durability.

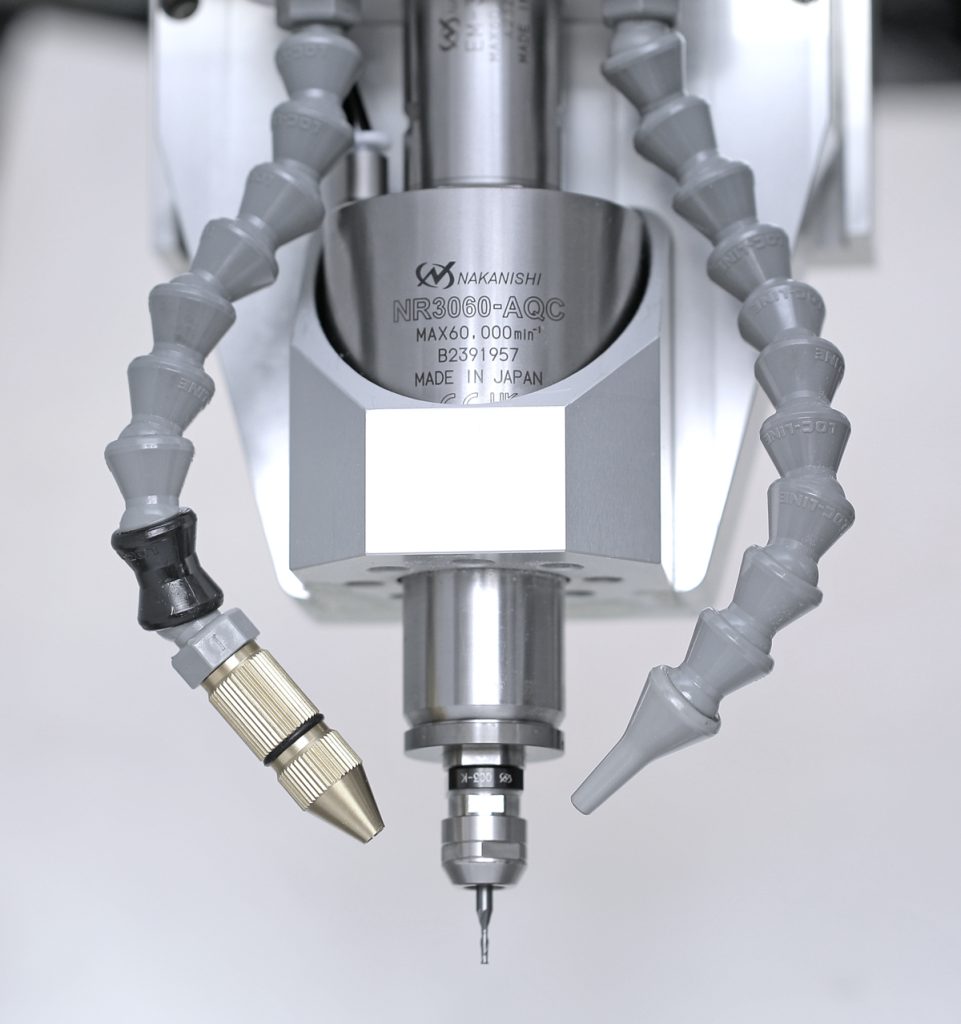

While the NS CNC Elara allows for various spindle configurations, the Mira J9 is designed exclusively with the NSK Nakanishi NR 3036 AQC spindle—one of the most trusted and widely used models featuring automatic tool change capability.

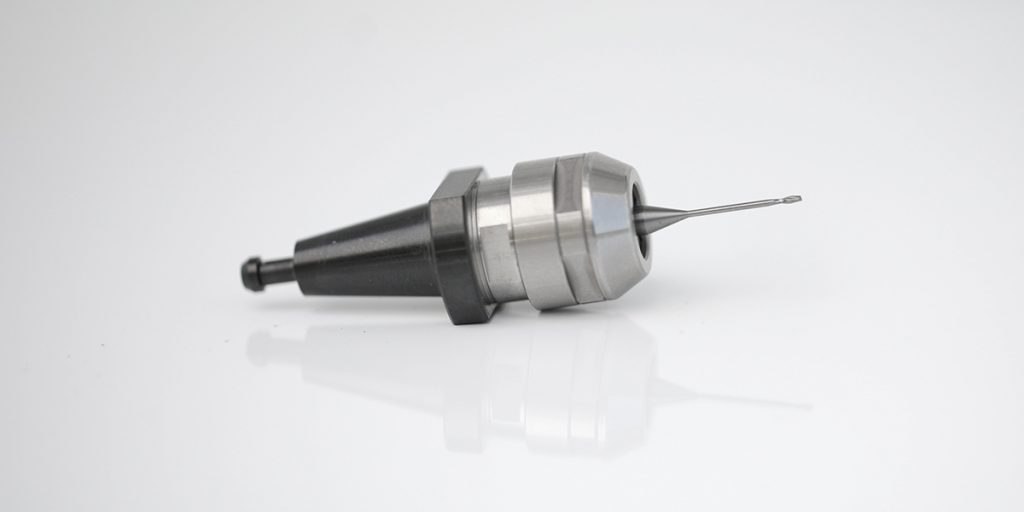

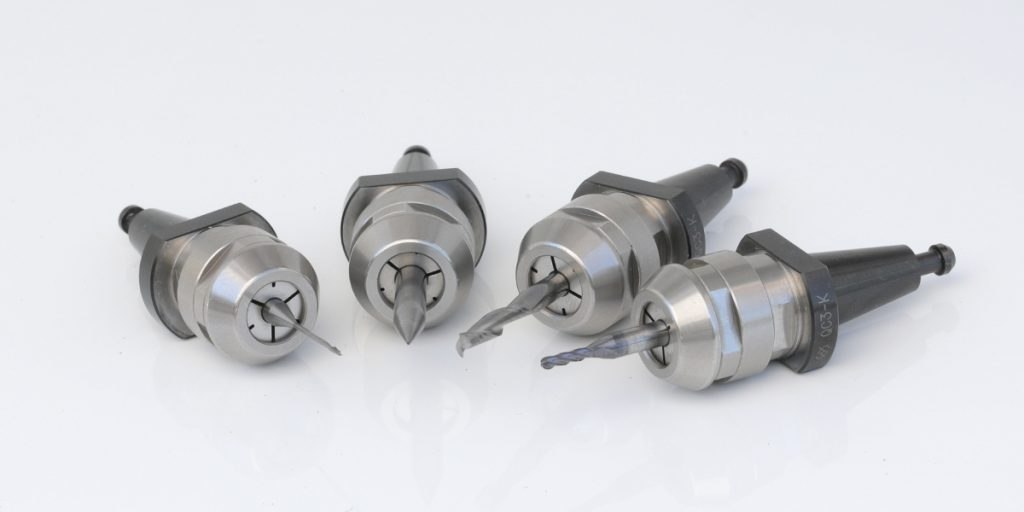

Similar to larger industrial CNC machines, tools are mounted in conical holders and inserted into the spindle, where they are securely clamped using an air-powered system. This professional-grade setup guarantees stable, high-precision machining with quick and reliable tool changes.



Reed more about Nakanishi

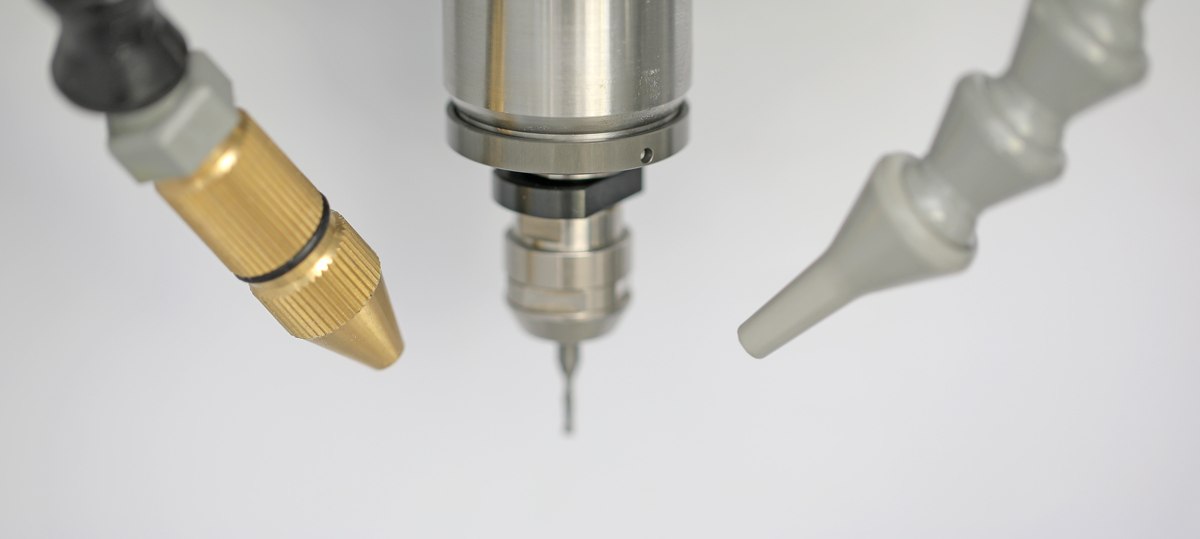

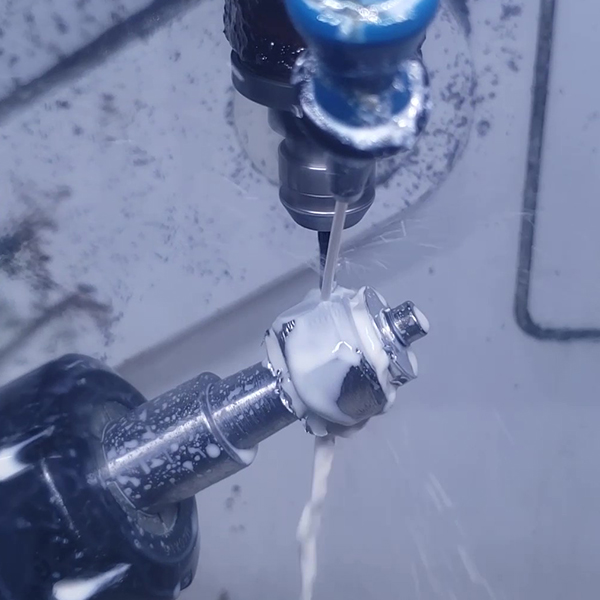

The machine has a new dual coolant system, offering users complete control over cooling and chip removal during machining operations. This flexible setup allows the operator to choose between two modes depending on the application:

1. Mist Mode
In Mist mode, coolant is mixed with air and delivered through a nozzle into the milling area. Both air pressure and coolant flow can be finely adjusted by the user. This method is ideal for efficiently clearing chips from the cutting zone, helping to prevent tool damage and maintain cutting accuracy.

2. Coolant Mode
The traditional Coolant mode delivers coolant under low pressure directly to the tool via a nozzle. Flow is controlled by an electromagnetic valve that creates a pulsing effect. These pulses can be fully customized through the machine’s control interface, allowing users to set the duration and frequency—from minimal dosing to a continuous flow.

This dual system ensures optimal cooling and chip management across a wide range of materials and cutting conditions, enhancing both tool life and machining quality.

Flexible Machining Needs

Dual Coolant System for
